Jerry Can Extrusion Blowing Molding Machine 20L Home Use

Place of Origin : Jiangsu, China

Brand Name : APOLLO

Model Number : ABLB90II

Certification : CE, ISO

Packaging Details : seaworthy package for jerry can 20L blow molding machine

Supply Ability : 40 Set/Sets per Month jerry can 20L blow molding machine

Price : $5,000.00 - $9,000.00/sets

Condition : New

Application : Bottle

Plastic Processed : PE

Year : 2019

Voltage : 220V&380V

Dimension(L*W*H) : 4.6*2.8*3.6M

Hollow part volume : 29CBM

PLC Brand : MITSUBISHI

Power (kW) : 49

Key Selling Points : Long Service Life

Warranty : 1 Year

Applicable Industries : Home Use

Blow Moulding Type : Extrusion Blow Moulding

Automatic : Yes

High Pressure Valve Brand : SMC

After-sales Service Provided : Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support

Clamping Force : 160KN

Weight (KG) : 11000

product name : jerry can 20L blow molding machine

Color : Blue+gray

PLC : MITUBISHI

Type : Extrusion Blow Molding Equipment

Advantages : Low Energy Consumption

Port : SHANGHAI

Contact Now

jerry can 20L blow molding machine



Specification of the machine :
1,Double- Crank four-pull bar Colsing Molding,  Balance of fixed sliding
2,Sealing and Tensile adopt double pole combined, useful for products forming !
3,Advanced Air route design, Single ,double intake both ok ! Low pressure mechanical closing moulds , sealing, tensile, high pressure blowing bottles !
4,Microcomputer automatic controller, Simple and easy operation
5,Perform Bottles heating by infrared ray, Controlled constant pressure control ,  Frequency controlled , To achieve the best accuracy of blowing
6, Functional and Economical types of investment
7, Small Space , Structural stability
8, Simple Operation , one person can be ok !
9,Also can supply 3-5 gallon different sizes of perform bottles and caps

Parament and Configuration

Theory Capacity

According to different of bottles



80-100pcs/h
500-700pcs/h(5L)



Max.Volume of bottles

According to number of cavity

7L(two Cavity) 30L (one Cavity)

Moulds

one or two cavity

1or2 cavities

Max.Diameter of bottles

355MM

Max.height

453MM

Moulds Area

600*600MM

Max.Thickness of Moulds

390MM

Stroke moulds

350MM

Max.Stretch Length

500MM

Closing Moulds

320KN

Power

Power

220~380V,50~60Hz

Heating Power

27.8KW

Working Pressure

0.8Mpa

Blowing Pressure

3.0Mpa

Size of Main machine

L*W*H

2250*740*1900MM

Size of Heating machine

L*W*H

2440*620*1740MM

weight of main machine

1000Kg

weight of heating machine

400Kg

auxiliary machine

 Air compressor for high pressure

1.2M3/3.0Mpa/15Kw

 Dryer machine

1.0M3/3.0Mpa/375KW

Air filter 2

1.0m3/3.0Mpa

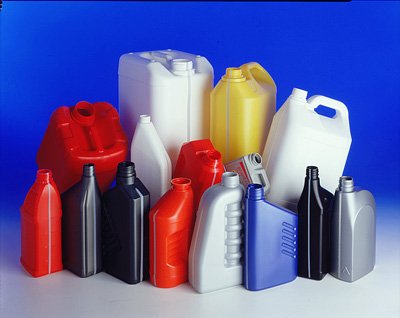

Some more pictures about our machine and its products

Jerry Can Extrusion Blowing Molding Machine 20L Home UseJerry Can Extrusion Blowing Molding Machine 20L Home UseJerry Can Extrusion Blowing Molding Machine 20L Home UseJerry Can Extrusion Blowing Molding Machine 20L Home UseJerry Can Extrusion Blowing Molding Machine 20L Home UseJerry Can Extrusion Blowing Molding Machine 20L Home Use
